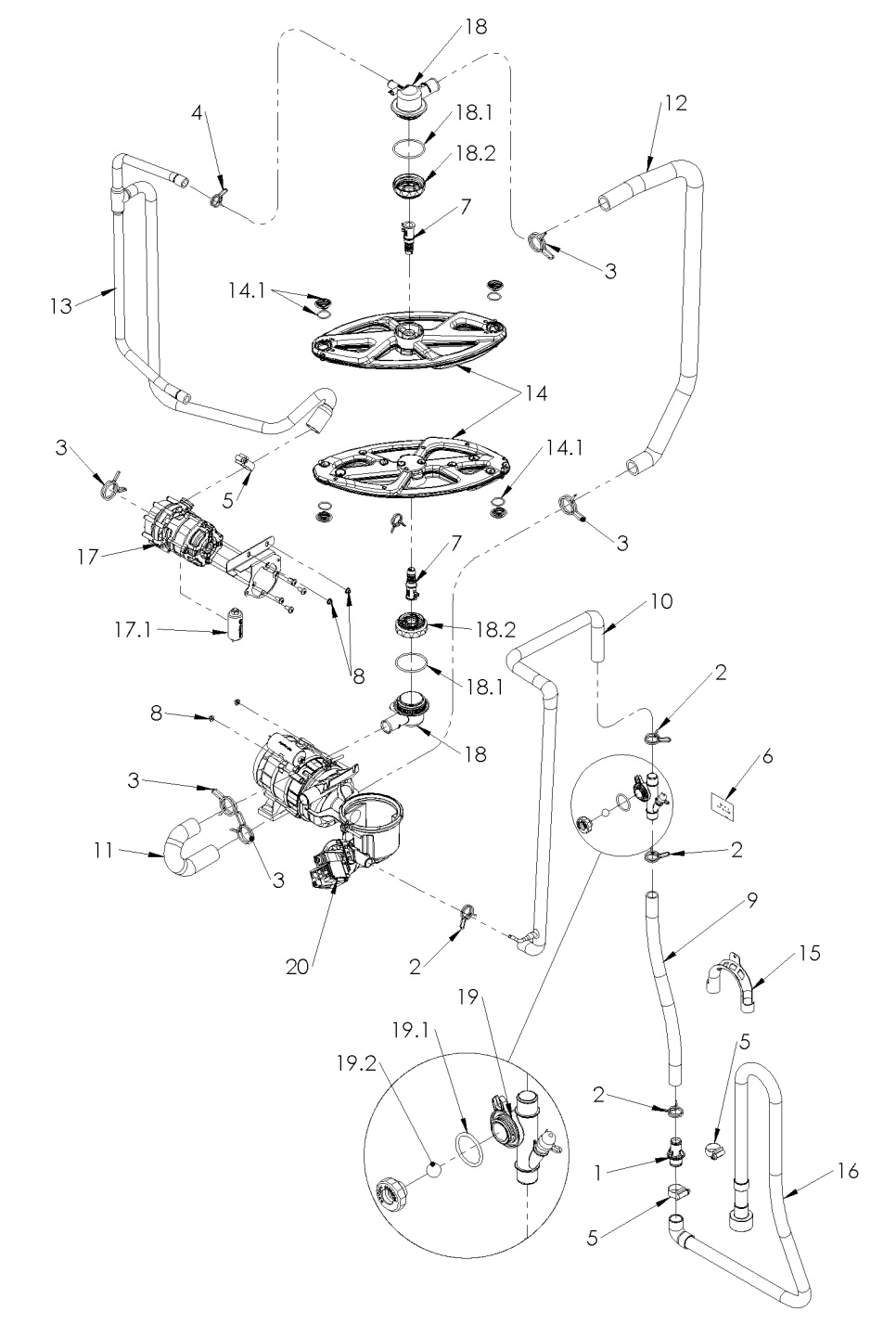

Wash, Rinse and Drain System – C400 (90001655-B)

£235.53

1	Drain double nipple Part No. 60004609	Drain double nipple quantity	£2.94 Exc. VAT
2	Wire Hose Clip (D24.2 x 2.2) Part No. 2802358	Wire Hose Clip (D24.2 x 2.2) quantity	£0.24 Exc. VAT
3	Spring clamp D 32.7 x 2.8 Part No. 2802362	Spring clamp D 32.7 x 2.8 quantity	£2.59 Exc. VAT
4	Spring clamp D 21.2 x 2.0 Part No. 2802355	Spring clamp D 21.2 x 2.0 quantity	£2.59 Exc. VAT
5	JClip (20-32) W3-12 mm with Posi Drive Part No. 30018878	JClip (20-32) W3-12 mm with Posi Drive quantity	£4.14 Exc. VAT
6	Drain height sticker Part No. 30012368	Drain height sticker quantity	£0.18 Exc. VAT
7	Washfield spindle Part No. 60003169	Washfield spindle quantity	£18.47 Exc. VAT
8	SK- Fastener Kit Part No. 30018806	SK- Fastener Kit quantity	£20.31 Exc. VAT
9	Drain Outlet Antisyphon 400mm Part No. 30017984	Drain Outlet Antisyphon 400mm quantity	£10.35 Exc. VAT
10	Hose - Drain Outlet - 400mm Part No. 30017976	Hose - Drain Outlet - 400mm quantity	£16.83 Exc. VAT
11	Hose - Wash Outlet bottom - 400mm Part No. 30017965	Hose - Wash Outlet bottom - 400mm quantity	£10.35 Exc. VAT
12	Hose - Wash outlet Top - 400mm Part No. 30017964	Hose - Wash outlet Top - 400mm quantity	£51.06 Exc. VAT
13	Hose - Rinse Outlet - 400mm Part No. 30017963	Hose - Rinse Outlet - 400mm quantity	£35.82 Exc. VAT
14	Wash & Rinse Arm - 400 Part No. 62004402	Wash & Rinse Arm - 400 quantity	£60.17 Exc. VAT
14.1	Wash Arm - Plug Part No. 60004854	Wash Arm - Plug quantity	£3.99 Exc. VAT
15	Waste Hose Hook Part No. 30006231	Waste Hose Hook quantity	£16.79 Exc. VAT
16	Drain hose 2M Part No. 60003759	Drain hose 2M quantity	£22.45 Exc. VAT
17	Rinse pump assembly 50 hz Part No. 30018085	Rinse pump assembly 50 hz quantity	£141.67 Exc. VAT
17.1	5μF Capacitor Part No. 30011583	5μF Capacitor quantity	£4.36 Exc. VAT
18	STD Centre Boss Part No. 30017896	STD Centre Boss quantity	£11.69 Exc. VAT
18.1	O-ring [56 x 3.0] Part No. 30014174	O-ring [56 x 3.0] quantity	£0.84 Exc. VAT
18.2	Counter nut, top Part No. 60004870	Counter nut, top quantity	£6.39 Exc. VAT
19	Drain Air break kit Part No. 30013404	Drain Air break kit quantity	£37.07 Exc. VAT
19.1	O-seal - Ø30mm x 3mm Part No. 30012629	O-seal - Ø30mm x 3mm quantity	£0.64 Exc. VAT
19.2	Drain Air break Ball Part No. 2801508	Drain Air break Ball quantity	£1.83 Exc. VAT
20	Sump Assembly - C400 (90001787-C) Part No. C400_Sump_Assembly_90001787C	View products	£235.53

Specifications

Specifications

Brand	Classeq

Wash, Rinse and Drain System – C400 (90001655-B)
