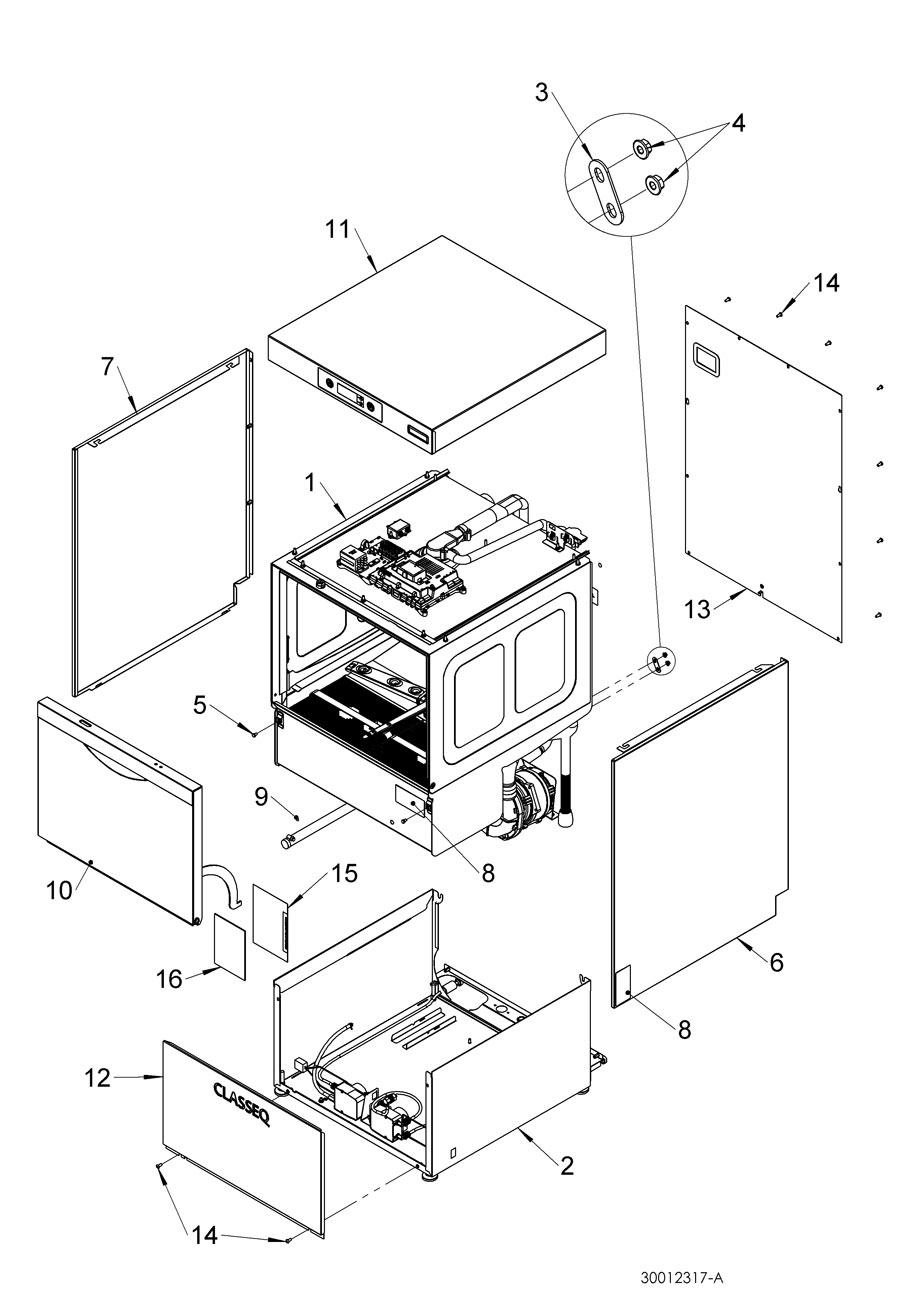

Machine assembly

£0.00 – £286.56

1	Not available as a spare Part No. n/a 500mm Wash cabinet assembly	Not available as a spare quantity	£0.00 Exc. VAT
2	Not available as a spare Part No. n/a 500mm Base assembly	Not available as a spare quantity	£0.00 Exc. VAT
3	Bracket - cabinet to base Part No. 30001833	Bracket - cabinet to base quantity	£1.22 Exc. VAT
4	M5 nut - Flange Part No. 30001186	M5 nut - Flange quantity	£0.18 Exc. VAT
5	M5x8mm Hex Head Part No. 30001124	M5x8mm Hex Head quantity	£0.19 Exc. VAT
6	500 RH side panel assembly Part No. 30011391	500 RH side panel assembly quantity	£90.11 Exc. VAT
7	500mm LH side panel assembly Part No. 30011392	500mm LH side panel assembly quantity	£93.26 Exc. VAT
8	Not available as a spare Part No. n/a Rating plate	Not available as a spare quantity	£0.00 Exc. VAT
9	Earth sticker Part No. 30008786	Earth sticker quantity	£0.12 Exc. VAT
10	500mm door assembly Part No. 30012338	500mm door assembly quantity	£286.56 Exc. VAT
11	500mm DS top panel assembly Part No. 30012379	500mm DS top panel assembly quantity	£268.55 Exc. VAT
12	500mm Bottom front panel Part No. 30011397	500mm Bottom front panel quantity	£41.64 Exc. VAT
13	Rear panel 500mm DS Part No. 30011633	Rear panel 500mm DS quantity	£17.04 Exc. VAT
14	M5 x 12 Hex socket button head screw Part No. 30006300	M5 x 12 Hex socket button head screw quantity	£0.10 Exc. VAT
15	500mm Foam seal Part No. 30011418	500mm Foam seal quantity	£2.25 Exc. VAT
16	Not available as a spare Part No. n/a Document enclosed envelope	Not available as a spare quantity	£0.00 Exc. VAT

Specifications

Brand	Classeq
