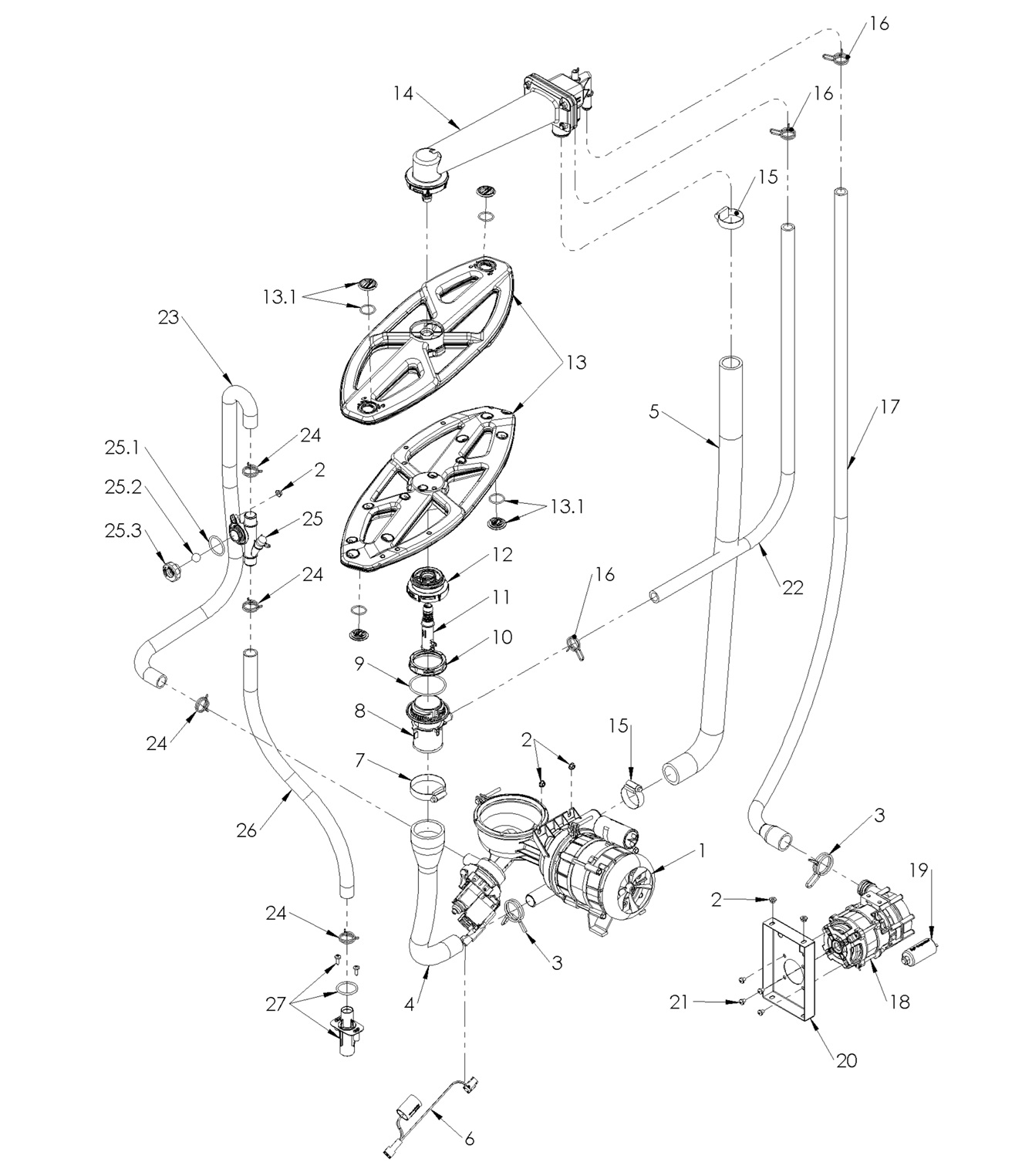

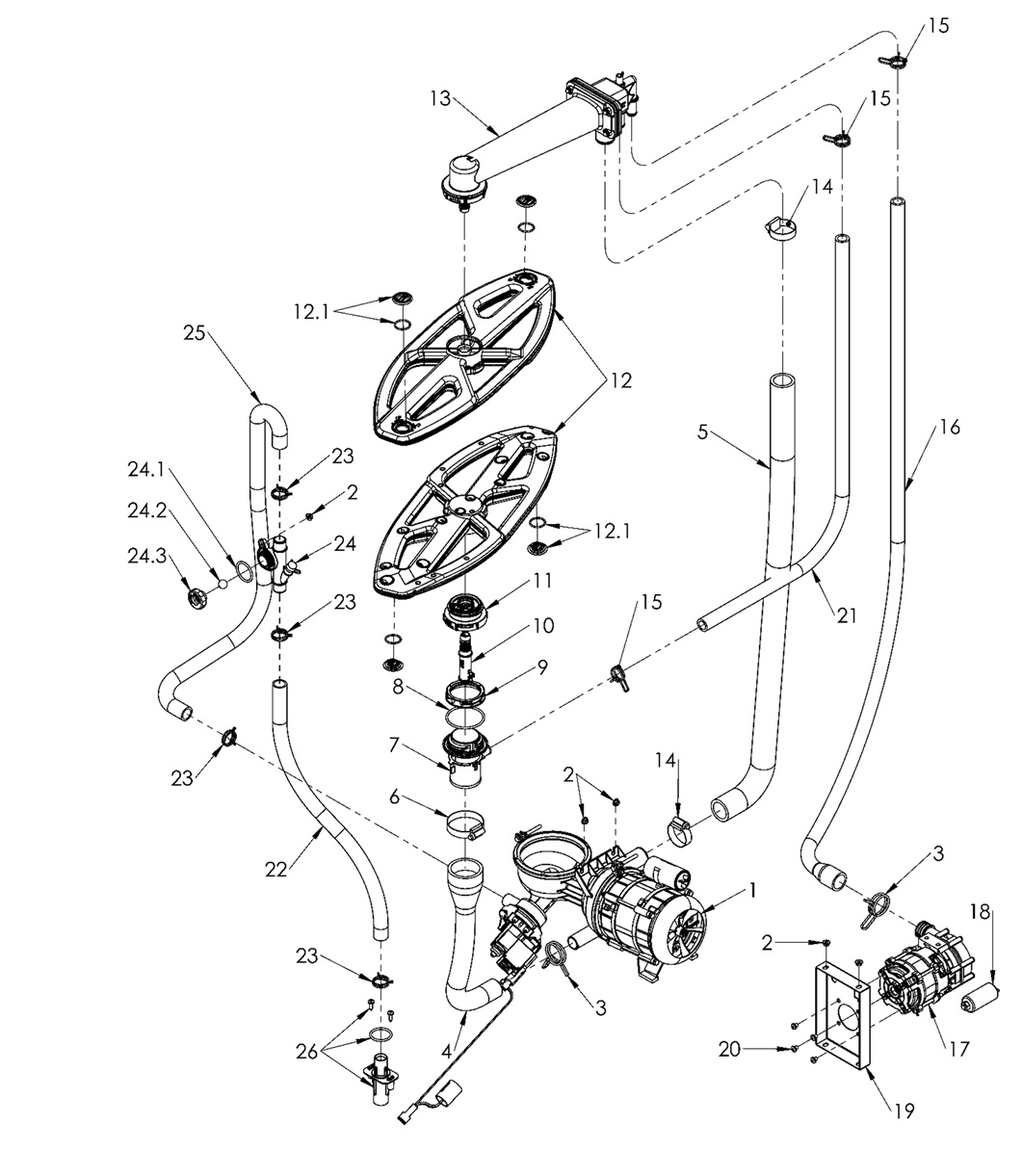

Wash Rinse Drain System 90002086-A

Name: Wash Rinse Drain System 90002086-A
SKU: 90002086-A Wash Rinse Drain System
Availability: InStock

In stock
Nationwide Delivery

£235.53

1	Sump Assembly 90002087-A Part No. 90002087-A Sump Assembly	View products	£235.53
2	PT- Fastener Kit Part No. 30022519	PT- Fastener Kit quantity	£38.31 Exc. VAT
3	PT- Fastener Kit Part No. 30022519	PT- Fastener Kit quantity	£38.31 Exc. VAT
4	PT Bottom Wash Hose Part No. 30022039	PT Bottom Wash Hose quantity	£15.00 Exc. VAT
5	PT Top Wash Hose Part No. 30022019	PT Top Wash Hose quantity	£40.00 Exc. VAT
6	RC Element Part No. 60004356	RC Element quantity	£12.50 Exc. VAT
7	PT- Fastener Kit Part No. 30022519	PT- Fastener Kit quantity	£38.31 Exc. VAT
8	Kit water inlet bottom boss Part No. 30002227	Kit water inlet bottom boss quantity	£59.20 Exc. VAT
9	O-ring [56 x 3.0] Part No. 30014174	O-ring [56 x 3.0] quantity	£0.84 Exc. VAT
10	Locking Nut Inner Part No. 61006990	Locking Nut Inner quantity	£10.75 Exc. VAT
11	Axis Spindle Bottom Part No. 60000399	Axis Spindle Bottom quantity	£3.00 Exc. VAT
12	Locking Ring Bottom Part No. 61007025	Locking Ring Bottom quantity	£32.90 Exc. VAT
13	Wash & Rinse Arm - 500 Part No. 61007407	Wash & Rinse Arm - 500 quantity	£76.52 Exc. VAT
13.1	Wash Arm - Plug Part No. 60004854	Wash Arm - Plug quantity	£4.20 Exc. VAT
14	SK Top Manifold PT Part No. 30022490	SK Top Manifold PT quantity	£100.00 Exc. VAT
15	PT- Fastener Kit Part No. 30022519	PT- Fastener Kit quantity	£38.31 Exc. VAT
16	PT- Fastener Kit Part No. 30022519	PT- Fastener Kit quantity	£38.31 Exc. VAT
17	PT Rinse Pump Outlet Hose Part No. 30022020	PT Rinse Pump Outlet Hose quantity	£29.69 Exc. VAT
18	PT Rinse Pump 50hz Part No. 30022004	PT Rinse Pump 50hz quantity	£141.67 Exc. VAT
19	5μF Capacitor Part No. 30011583	5μF Capacitor quantity	£4.36 Exc. VAT
20	PT Rinse Pump Bracket Part No. 30022014	PT Rinse Pump Bracket quantity	£12.00 Exc. VAT
21	PT- Fastener Kit Part No. 30022519	PT- Fastener Kit quantity	£38.31 Exc. VAT
22	PT Bottom Rinse Hose Part No. 30022040	PT Bottom Rinse Hose quantity	£15.00 Exc. VAT
23	PT Drain Pump Outlet Hose to Anti-siphon Part No. 30019267	PT Drain Pump Outlet Hose to Anti-siphon quantity	£12.50 Exc. VAT
24	PT- Fastener Kit Part No. 30022519	PT- Fastener Kit quantity	£38.31 Exc. VAT
25	Kit drain air break Part No. 30019002	Kit drain air break quantity	£37.07 Exc. VAT
25.1	O-seal - Ø30mm x 3mm Part No. 30012629	O-seal - Ø30mm x 3mm quantity	£0.64 Exc. VAT
25.2	Drain Air break Ball Part No. 2801508	Drain Air break Ball quantity	£1.83 Exc. VAT
25.3	Drain Air Break Nut Anti-siphon Part No. 61006936	Drain Air Break Nut Anti-siphon quantity	£2.50 Exc. VAT
26	PT Drain Hose Outlet 2025 Part No. 30022121	PT Drain Hose Outlet 2025 quantity	£15.00 Exc. VAT
27	SK Drain Boss with Fixings Part No. 30022489	SK Drain Boss with Fixings quantity	£20.00 Exc. VAT

Specifications

Specifications

Brand	Classeq
