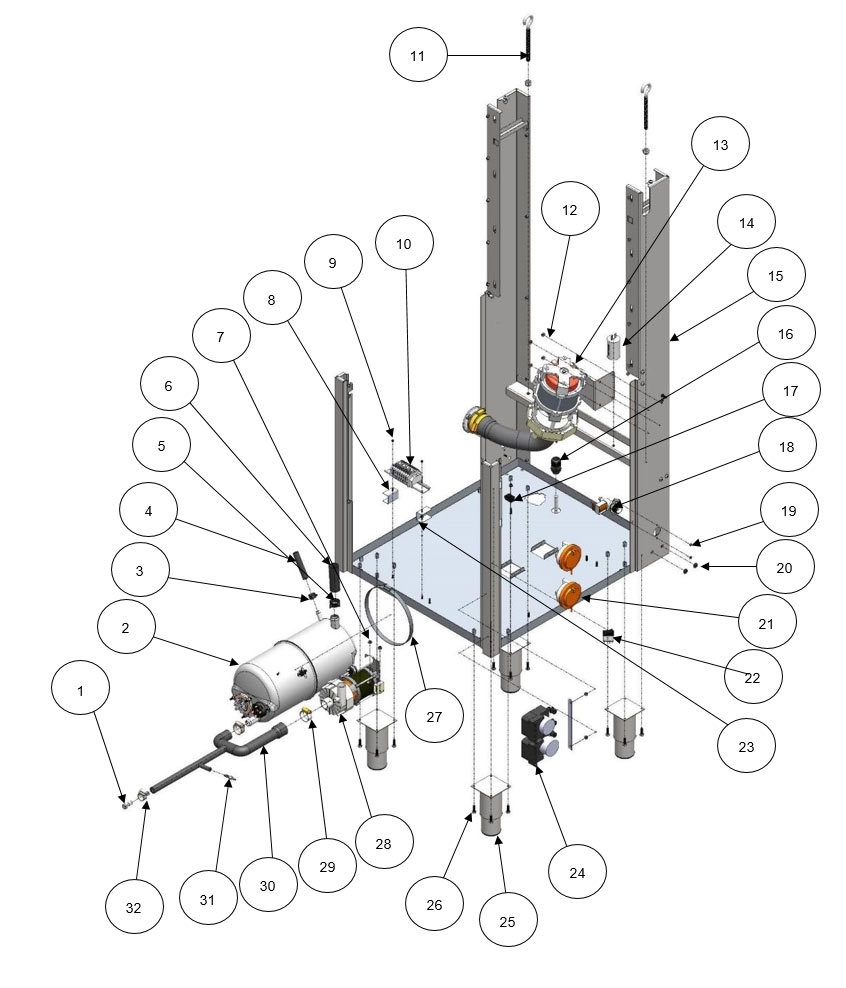

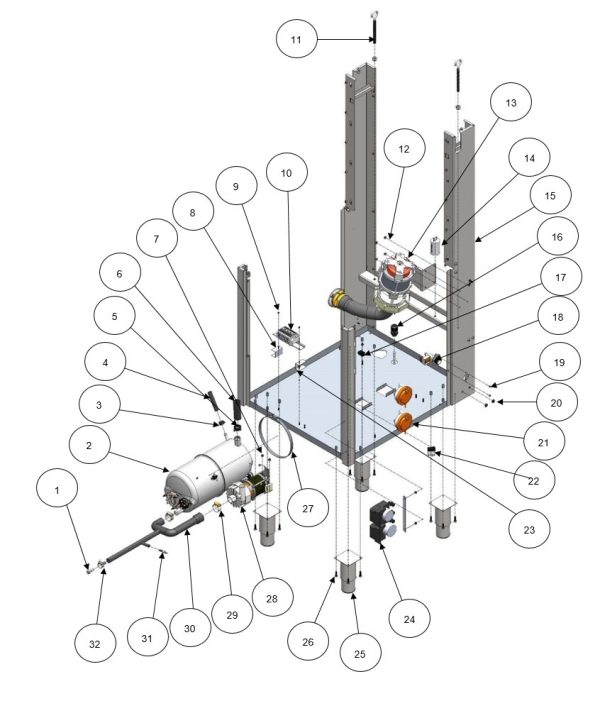

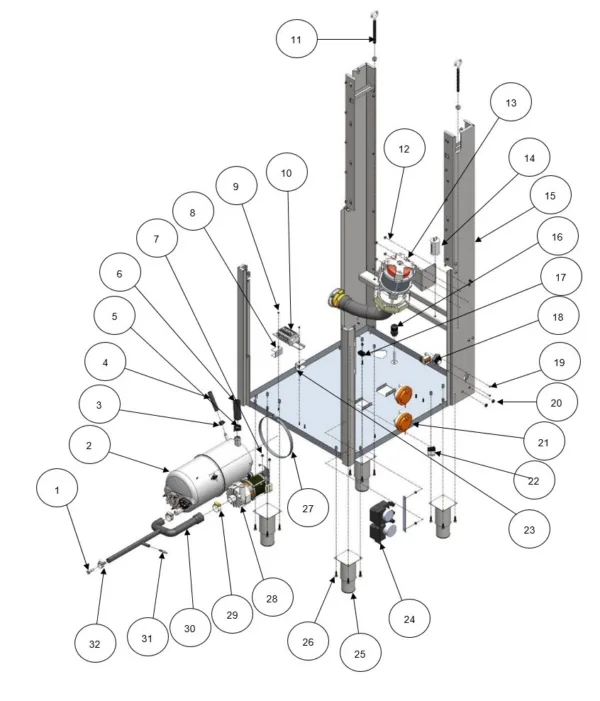

Base Assembly (Air Break)

Name: Base Assembly (Air Break)
SKU: Base-Assembly-Air-Break-4756
Availability: InStock

In stock
Nationwide Delivery

Price range: £0.00 through £326.43

1	Stopper end cap Part No. 70007962	Stopper end cap quantity	£16.34 Exc. VAT
2	Rinse Tank Part No. Rinse Tank-3452	View products	Price range: £0.14 through £275.44
3	Spring band Ø18mm Part No. 30002577	Spring band Ø18mm quantity	£1.08 Exc. VAT
4	Hose 9.5mm Silicone Cut 985mm Part No. 30006248	Hose 9.5mm Silicone Cut 985mm quantity	£24.79 Exc. VAT
5	Spring band - Ø19mm Part No. 30006040	Spring band - Ø19mm quantity	£3.62 Exc. VAT
6	Air break to rinse boiler fill hose 500mm Part No. 30006256	Air break to rinse boiler fill hose 500mm quantity	£6.91 Exc. VAT
7	M5 nut - Flange Part No. 30006306	M5 nut - Flange quantity	£0.56 Exc. VAT
8	Terminal block lifting bracket Part No. 30001230	Terminal block lifting bracket quantity	£9.60 Exc. VAT
9	M3 nut - Flange Part No. 30001071	M3 nut - Flange quantity	£0.14 Exc. VAT
10	Terminal block Assembly Part No. Terminal block Assembly-1263	View products	Price range: £1.46 through £45.90
11	Eye screw Part No. 61004991	Eye screw quantity	£10.49 Exc. VAT
12	M6 flange nut Part No. 30001060	M6 flange nut quantity	£0.58 Exc. VAT
13	Wash Pump Assembly Part No. Wash Pump Assembly-3452	View products	Price range: £0.07 through £326.43
14	Capacitor - 10μF Part No. 30002509	Capacitor - 10μF quantity	£14.82 Exc. VAT
15	Not available as a spare Part No. n/a Machine base assembly	Not available as a spare quantity	£0.00 Exc. VAT
16	Cable Gland Part No. 3110153	Cable Gland quantity	£4.21 Exc. VAT
17	Cable cleat No 4 Part No. 30001844	Cable cleat No 4 quantity	£0.52 Exc. VAT
18	Inlet solenoid valve Part No. 30000982	Inlet solenoid valve quantity	£26.00 Exc. VAT
19	M4 x 10mm long - Pan head screw Part No. 30006293	M4 x 10mm long - Pan head screw quantity	£0.36 Exc. VAT
20	Chemical tube grommet Part No. 30002141	Chemical tube grommet quantity	£4.85 Exc. VAT
21	Air pressure switch double Part No. 30000967	Air pressure switch double quantity	£44.25 Exc. VAT
22	Momentary rocker switch Part No. 30000983	Momentary rocker switch quantity	£23.30 Exc. VAT
23	M4 nut - Flange Part No. 30006305	M4 nut - Flange quantity	£0.56 Exc. VAT
24	Chemical Pumps Part No. Chemical Pumps-7745	View products	Price range: £0.48 through £153.52
25	Adjuster Foot P3 Part No. 30001222	Adjuster Foot P3 quantity	£23.34 Exc. VAT
26	M6 x 20mm long Hex head screw Part No. 30001080	M6 x 20mm long Hex head screw quantity	£0.58 Exc. VAT
27	Jubilee clip - 160mm - 180mm Part No. 30001113	Jubilee clip - 160mm - 180mm quantity	£6.23 Exc. VAT
28	Rinse Pump Assembly Part No. Rinse Pump Assembly-8656	View products	Price range: £0.36 through £205.94
29	Jubilee clip - Ø25mm to Ø40mm Part No. 30001089	Jubilee clip - Ø25mm to Ø40mm quantity	£3.62 Exc. VAT
30	Hose - Rinse boiler - Rinse pump Part No. 60005335	Hose - Rinse boiler - Rinse pump quantity	£16.51 Exc. VAT
31	6-4mm Inline reducing hose connector Part No. 30006129	6-4mm Inline reducing hose connector quantity	£8.44 Exc. VAT
32	Jubilee clip - Ø12mm to Ø22mm Part No. 30001088	Jubilee clip - Ø12mm to Ø22mm quantity	£3.62 Exc. VAT

Specifications

Specifications

Brand	Classeq
