C500 Dishwasher Spare Parts Drawings

C500 Dishwasher Spare Parts Drawings

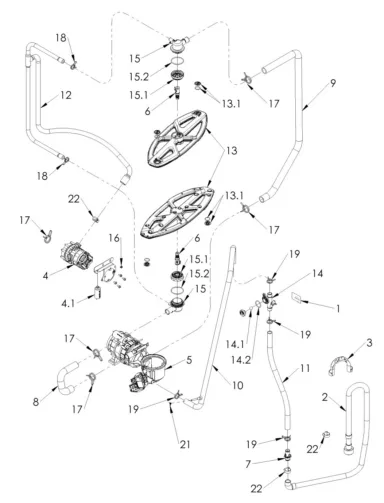

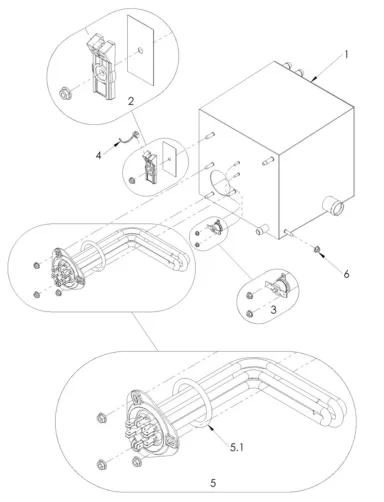

The Classeq C500 Dishwasher Spare Parts & Drawings page provides detailed exploded diagrams and part lists for all the major components of the C500 undercounter dishwasher — including wash arms, pumps, filters, seals, tank assemblies, and electrical modules. These technical drawings make it easy for service technicians and maintenance teams to precisely identify and source genuine Classeq replacement parts, helping to reduce downtime and ensure the machine continues to run efficiently. Built for heavy-duty use in bars, restaurants or catering environments, the C500 features a 500 × 500 mm basket, click-in wash arms, double filtration, and standard pumps, and using original OEM parts keeps its performance reliable and long-lasting.
