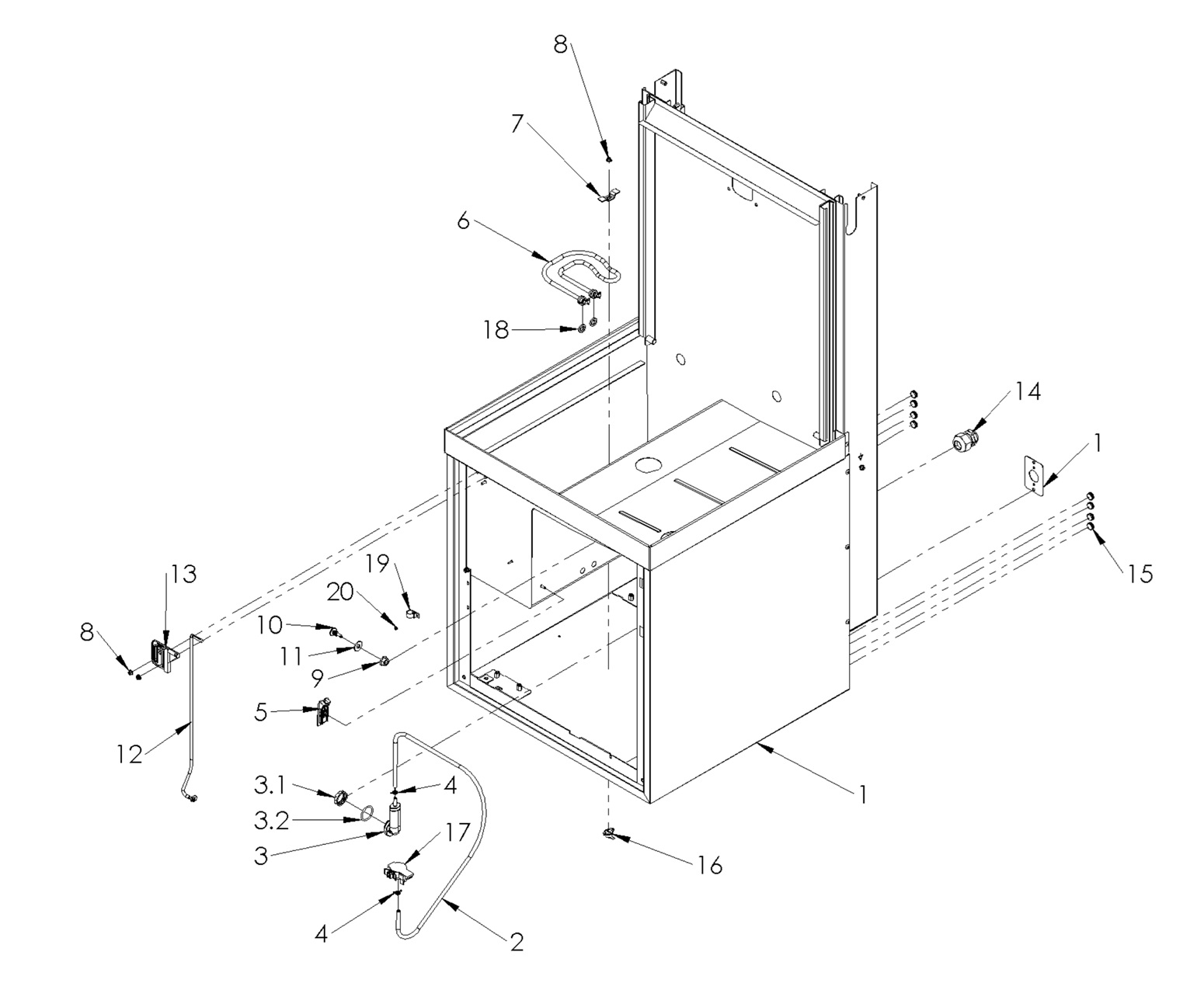

Frame Assembly 90002078-A

Name: Frame Assembly 90002078-A
SKU: 90002078-A Frame Assembly
Availability: InStock

In stock
Nationwide Delivery

£1.65

1	Not available as a spare Part No. n/a PT - Main Assembly	Not available as a spare quantity	£0.00 Exc. VAT
2	Hose Wash APS Tube UC350/PT Part No. 30014329	Hose Wash APS Tube UC350/PT quantity	£4.36 Exc. VAT
3	Air chamber assembly kit Part No. 60003525	Air chamber assembly kit quantity	£33.81 Exc. VAT
3.1	Nut (Mutter) Part No. 60004612	Nut (Mutter) quantity	£3.06 Exc. VAT
3.2	O-seal - Ø30mm x 3mm Part No. 30012629	O-seal - Ø30mm x 3mm quantity	£0.66 Exc. VAT
4	Spring clip - Ø8.8mm to Ø9.3mm Part No. 30011994	Spring clip - Ø8.8mm to Ø9.3mm quantity	£0.37 Exc. VAT
5	Thermal sensor kit Part No. 30002179	Thermal sensor kit quantity	£47.22 Exc. VAT
6	Wash element 2 kW Part No. 30018105	Wash element 2 kW quantity	£80.60 Exc. VAT
7	Wash Element Retaining Bracket Part No. 30006126	Wash Element Retaining Bracket quantity	£8.95 Exc. VAT
8	M5 nut - Flange Part No. 30001186	M5 nut - Flange quantity	£0.19 Exc. VAT
9	PT- Fastener Kit Part No. 30022519	PT- Fastener Kit quantity	£39.65 Exc. VAT
10	Chemical Outlet Port Part No. 30022038	Chemical Outlet Port quantity	£10.35 Exc. VAT
11	Inlet Seal Washer Part No. 30022035	Inlet Seal Washer quantity	£1.55 Exc. VAT
12	Door Switch Part No. 30018123	Door Switch quantity	£16.75 Exc. VAT
13	Switch Bracket CP500 Part No. 61007080	Switch Bracket CP500 quantity	£3.11 Exc. VAT
14	Cable Gland Part No. 3110153	Cable Gland quantity	£4.21 Exc. VAT
15	Blanking Grommet (12.5mm) Part No. 30019184	Blanking Grommet (12.5mm) quantity	£1.81 Exc. VAT
16	SK – 85 degree overheat kit Part No. 30019016	SK – 85 degree overheat kit quantity	£10.71 Exc. VAT
17	Pressure sensor Part No. 3126044	Pressure sensor quantity	£73.27 Exc. VAT
18	Wash Element Fibre Washer 19mm x 3mm Part No. 30014272	Wash Element Fibre Washer 19mm x 3mm quantity	£0.33 Exc. VAT
19	Reusable Cable Clip Part No. 30022058	Reusable Cable Clip quantity	£1.55 Exc. VAT
20	PT- Fastener Kit Part No. 30022519	PT- Fastener Kit quantity	£39.65 Exc. VAT

Specifications

Specifications

Brand	Classeq
