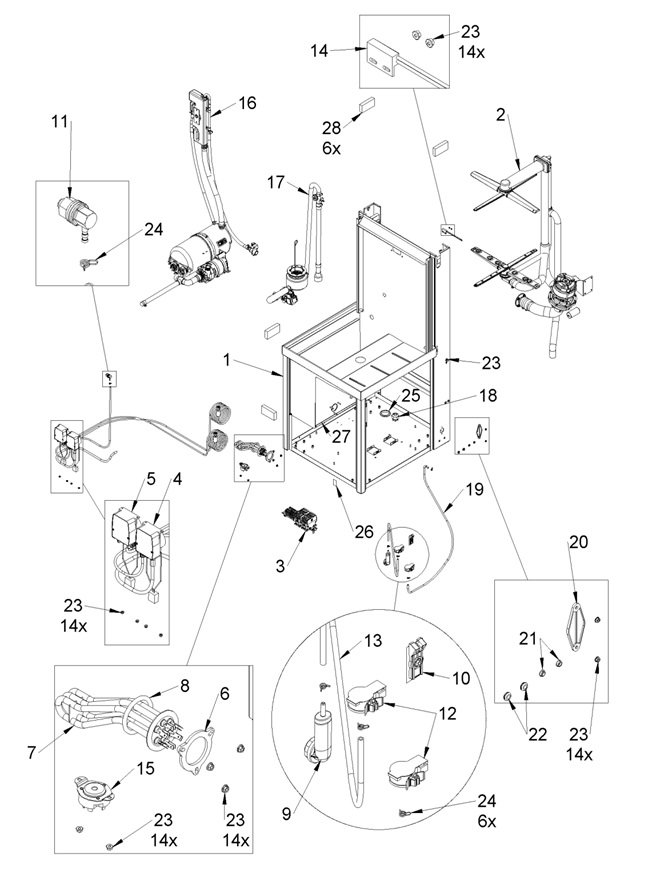

Base Assembly 30013537-B

Base Assembly 30013537-B

In stock
Nationwide Delivery

Price range: £0.52 through £102.62

1	Not available as a spare Part No. n/a Steel Base Assembly	Not available as a spare quantity	£0.00 Exc. VAT
2	Wash and Rinse System 30013510-A Part No. P500A-wash-and-rinse-system	View products	Price range: £0.52 through £102.62
3	Electrical Assembly STD 30015009-A Part No. 30015009-A Electrical Assembly STD Classeq badge	View products	£32.71
4	Rinse Aid Pump Assembly Part No. 30015061	Rinse Aid Pump Assembly quantity	£120.61 Exc. VAT
5	Detergent Pump Assembly Part No. 30015060	Detergent Pump Assembly quantity	£120.61 Exc. VAT
6	Clamping Bracket - rinse element Part No. 117003	Clamping Bracket - rinse element quantity	£10.69 Exc. VAT
7	Wash Element - 4.05KW No Phile PT Part No. 30013218	Wash Element - 4.05KW No Phile PT quantity	£37.46 Exc. VAT
8	Element O ring 6mm X 45mm Part No. 30000947	Element O ring 6mm X 45mm quantity	£4.66 Exc. VAT
9	Air chamber assembly kit Part No. 60003525	Air chamber assembly kit quantity	£33.81 Exc. VAT
10	Thermal sensor kit Part No. 30002179	Thermal sensor kit quantity	£47.22 Exc. VAT
11	Detergent inlet fitting Part No. 30011822	Detergent inlet fitting quantity	£22.57 Exc. VAT
12	Pressure sensor Part No. 3126044	Pressure sensor quantity	£73.27 Exc. VAT
13	Hose Wash APS Tube UC350/PT Part No. 30014329	Hose Wash APS Tube UC350/PT quantity	£4.36 Exc. VAT
14	Door switch Part No. 30000980	Door switch quantity	£16.75 Exc. VAT
15	Thermal triple switch – 3pole - 85ºC (normally closed) Part No. 30000969	Thermal triple switch – 3pole - 85ºC (normally closed) quantity	£53.51 Exc. VAT
16	Not available as a spare Part No. 90000na See Fill System Air Break	Not available as a spare quantity	£0.00 Exc. VAT
17	Not available as a spare Part No. 90000na See Drain System	Not available as a spare quantity	£0.00 Exc. VAT
18	Cable Gland Part No. 3110153	Cable Gland quantity	£4.21 Exc. VAT
19	Air break to air pressure switch tube Part No. 30006284	Air break to air pressure switch tube quantity	£8.90 Exc. VAT
20	20mm blanking cover Part No. 30001049	20mm blanking cover quantity	£1.36 Exc. VAT
21	Plastic cap Part No. 30002143	Plastic cap quantity	£0.43 Exc. VAT
22	Chemical tube grommet Part No. 30002141	Chemical tube grommet quantity	£4.85 Exc. VAT
23	M3 Flange nut (DIN 6923) Part No. 30001171	M3 Flange nut (DIN 6923) quantity	£1.26 Exc. VAT
24	Spring Clip - Ø7.8mm to Ø8.3mm Part No. 30001083	Spring Clip - Ø7.8mm to Ø8.3mm quantity	£1.49 Exc. VAT
25	Grommet 50mm Part No. 30001834	Grommet 50mm quantity	£2.78 Exc. VAT
26	Not available as a spare Part No. n/a Chemical pump label	Not available as a spare quantity	£0.00 Exc. VAT
27	350mm Foam seal Part No. 30011634	350mm Foam seal quantity	£1.58 Exc. VAT
28	Foam Pad - P500A Part No. 30013499	Foam Pad - P500A quantity	£1.31 Exc. VAT

Specifications

Specifications

Brand	Classeq
