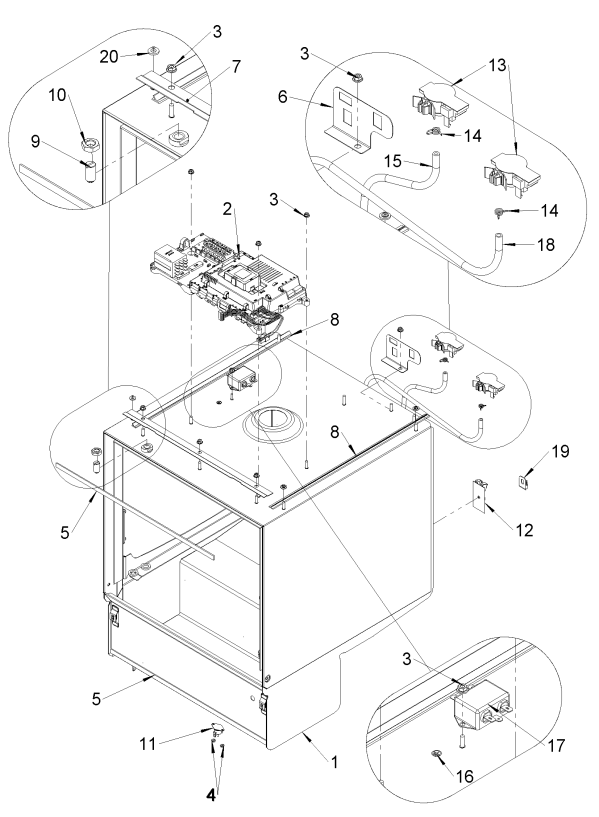

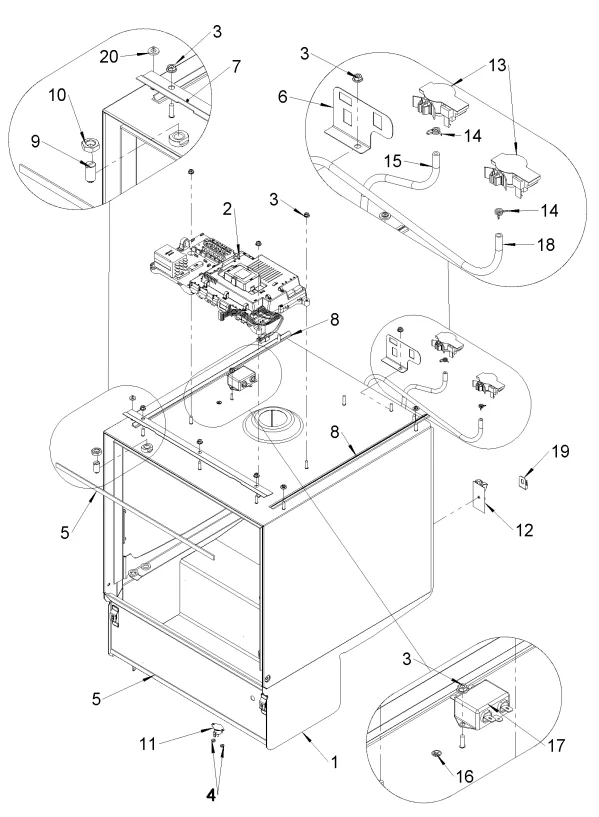

Cabinet external assembly

Name: Cabinet external assembly
SKU: Cabinet-external-assembly_g500duo-1
Availability: InStock

In stock
Nationwide Delivery

Price range: £0.10 through £363.63

1	400WS wash cabinet external Part No. 30003309	400WS wash cabinet external quantity	£363.63 Exc. VAT
2	Control unit assembly WS Part No. Control-unit-assembly_325-1	View products	Price range: £0.10 through £343.48
3	M5 nut - Flange Part No. 30001186	M5 nut - Flange quantity	£0.19 Exc. VAT
4	M3 Flange nut (DIN 6923) Part No. 30001171	M3 Flange nut (DIN 6923) quantity	£1.26 Exc. VAT
5	400mm Foam seal Part No. 30011635	400mm Foam seal quantity	£1.65 Exc. VAT
6	Air pressure sensor bracket Part No. 30011625	Air pressure sensor bracket quantity	£5.27 Exc. VAT
7	400mm Front water manage plate Part No. 30011652	400mm Front water manage plate quantity	£6.16 Exc. VAT
8	Side water management seal - 400/350mm Part No. 30012007	Side water management seal - 400/350mm quantity	£1.65 Exc. VAT
9	Ball catch - M12 Part No. 30001064	Ball catch - M12 quantity	£6.87 Exc. VAT
10	M12 Thin nut Part No. 30001070	M12 Thin nut quantity	£0.68 Exc. VAT
11	Overheat stat 1 Pole 85°C Part No. 30007917	Overheat stat 1 Pole 85°C quantity	£8.01 Exc. VAT
12	Thermal sensor kit Part No. 30002179	Thermal sensor kit quantity	£47.22 Exc. VAT
13	Pressure sensor Part No. 3126044	Pressure sensor quantity	£73.27 Exc. VAT
14	Spring Clip - Ø7.8mm to Ø8.3mm Part No. 30001083	Spring Clip - Ø7.8mm to Ø8.3mm quantity	£1.49 Exc. VAT
15	400mm WS rinse APS tube Part No. 30011888	400mm WS rinse APS tube quantity	£3.50 Exc. VAT
16	Earth sticker Part No. 30008786	Earth sticker quantity	£0.12 Exc. VAT
17	UC Mains filter Part No. 30012203	UC Mains filter quantity	£29.15 Exc. VAT
18	Wash APS Tube - 400 / 500 Part No. 30014330	Wash APS Tube - 400 / 500 quantity	£5.26 Exc. VAT
19	Bracket - UC WS Anti Rotation Part No. 30013386	Bracket - UC WS Anti Rotation quantity	£4.47 Exc. VAT
20	Spring Clip - Ø7.8mm to Ø8.3mm Part No. 30001083	Spring Clip - Ø7.8mm to Ø8.3mm quantity	£1.49 Exc. VAT
21	500mm Foam seal Part No. 30011418	500mm Foam seal quantity	£2.33 Exc. VAT
22	M5 Press nut Part No. 30011807	M5 Press nut quantity	£0.94 Exc. VAT
23	500mm front water ingress plate Part No. 30011649	500mm front water ingress plate quantity	£6.75 Exc. VAT
24	Side water management seal - 500mm Part No. 30012006	Side water management seal - 500mm quantity	£1.80 Exc. VAT
25	Wash APS tube - 500mm Part No. 30011886	Wash APS tube - 500mm quantity	£1.58 Exc. VAT
26	500mm WS rinse APS tube Part No. 30011890	500mm WS rinse APS tube quantity	£4.21 Exc. VAT

Specifications

Specifications

Brand	Classeq
