Machine assembly

Name: Machine assembly
SKU: Machine-assembly_140-1
Availability: InStock

In stock
Nationwide Delivery

Price range: £0.00 through £163.53

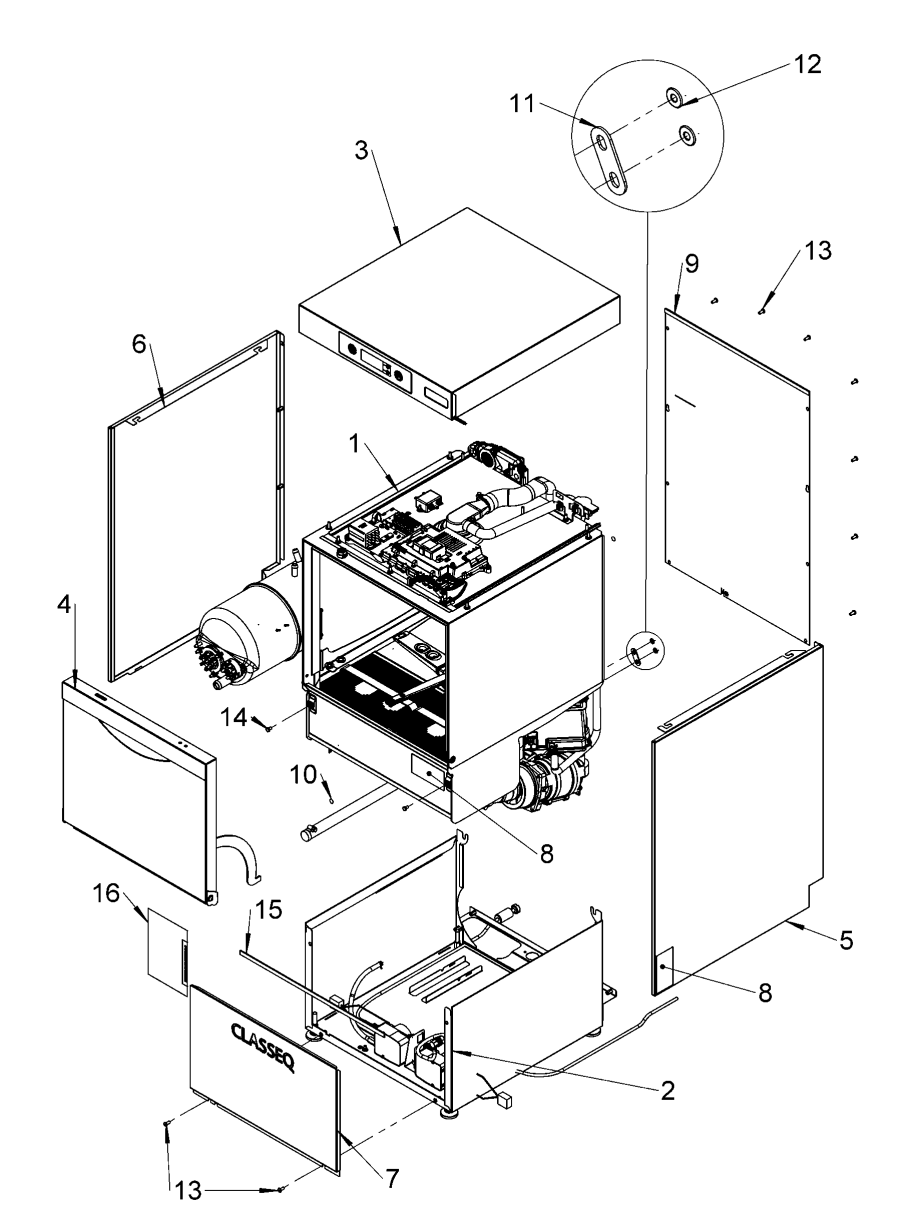

1	Not available as a spare Part No. 90000na 400mm WS Wash cabinet assembly	Not available as a spare quantity	£0.00 Exc. VAT
2	Not available as a spare Part No. 90000na 400mm Base assembly	Not available as a spare quantity	£0.00 Exc. VAT
3	400DS Top panel LCD components assembly Part No. 30003316	400DS Top panel LCD components assembly quantity	£163.53 Exc. VAT
4	400mm Door assembly Part No. 30003317	400mm Door assembly quantity	£243.77 Exc. VAT
5	400mm RH side panel assembly Part No. 30011666	400mm RH side panel assembly quantity	£74.93 Exc. VAT
6	400mm LH side panel assembly Part No. 30011667	400mm LH side panel assembly quantity	£73.55 Exc. VAT
7	400mm Bottom front panel Part No. 30011673	400mm Bottom front panel quantity	£32.66 Exc. VAT
8	Not available as a spare Part No. 90000na Rating plate	Not available as a spare quantity	£0.00 Exc. VAT
9	400mm WS rear panel assembly Part No. 30003320	400mm WS rear panel assembly quantity	£19.36 Exc. VAT
10	Earth sticker Part No. 30008786	Earth sticker quantity	£0.12 Exc. VAT
11	Bracket - cabinet to base Part No. 30001833	Bracket - cabinet to base quantity	£1.26 Exc. VAT
12	M5 nut - Flange Part No. 30001186	M5 nut - Flange quantity	£0.19 Exc. VAT
13	M5 x 12 Hex socket button head screw Part No. 30006300	M5 x 12 Hex socket button head screw quantity	£0.10 Exc. VAT
14	M5x8mm Hex Head Part No. 30001124	M5x8mm Hex Head quantity	£0.20 Exc. VAT
15	400mm Foam seal Part No. 30011635	400mm Foam seal quantity	£1.65 Exc. VAT
16	Not available as a spare Part No. 90000na Document encloised envelope	Not available as a spare quantity	£0.00 Exc. VAT

Specifications

Specifications

Brand	Classeq
