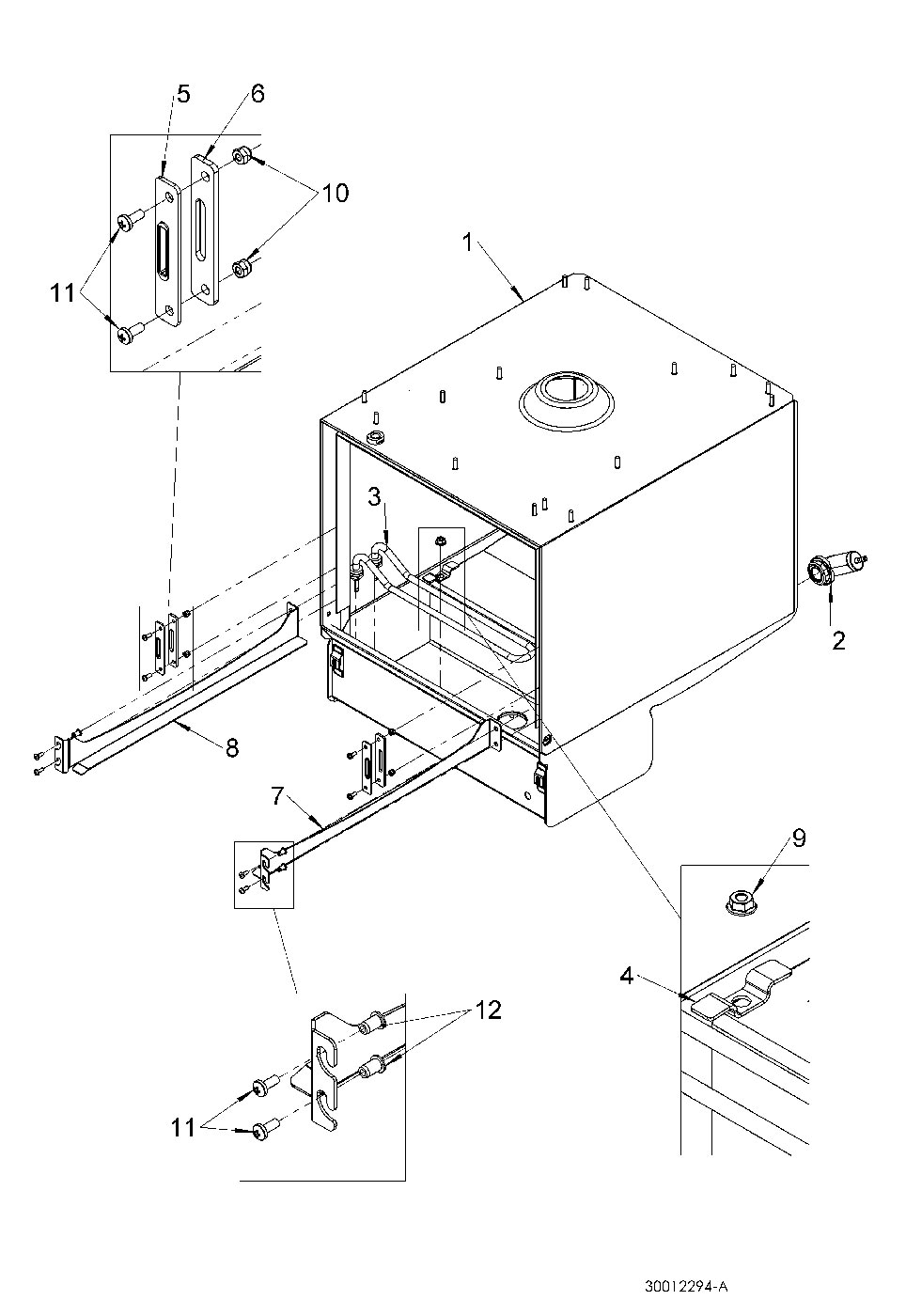

Cabinet internal assembly

£0.53 – £73.40

1	Not available as a spare Part No. 90000na 350mm Wash cabinet assembly	Not available as a spare quantity — OR —	£0.00 Exc. VAT
2	Air chamber assembly kit Part No. 60003525	Air chamber assembly kit quantity — OR —	£30.80 Exc. VAT
3	2kW Wash element Part No. 30000975	2kW Wash element quantity — OR —	£73.40 Exc. VAT
4	Wash Element Retaining Bracket Part No. 30006126	Wash Element Retaining Bracket quantity — OR —	£8.16 Exc. VAT
5	Plastic Door Inlay Part No. 30001061	Plastic Door Inlay quantity — OR —	£1.31 Exc. VAT
6	Plate - Door stop Part No. 30001062	Plate - Door stop quantity — OR —	£2.60 Exc. VAT
7	350mm Basket ramp RH Part No. 30006601	350mm Basket ramp RH quantity — OR —	£18.77 Exc. VAT
8	350mm Basket ramp LH Part No. 30006602	350mm Basket ramp LH quantity — OR —	£18.77 Exc. VAT
9	M6 nut – Flange Part No. 30001848	M6 nut – Flange quantity — OR —	£0.27 Exc. VAT
10	M4 Nylock nut (ISO 7040) Part No. 30001172	M4 Nylock nut (ISO 7040) quantity — OR —	£0.53 Exc. VAT
11	M4 x 10mm long - Pan head screw Part No. 30006293	M4 x 10mm long - Pan head screw quantity — OR —	£0.32 Exc. VAT
12	Round nutserts Part No. 30001075	Round nutserts quantity — OR —	£1.62 Exc. VAT
13	Wash Element Fibre Washer 19mm x 3mm Part No. 30014272 Not shown	Wash Element Fibre Washer 19mm x 3mm quantity — OR —	£0.30 Exc. VAT

Details

Item 1 Not available as as spare
